Example: Integrate a Databricks model

This page provides an example configuration and model adapter for a custom connection to a model hosted in Databricks. Review the benefits of external model integration to understand if an external model is suitable for your use case.

For a step-by-step guide, refer to the documentation on how to create a model adapter and how to create a connection to an externally hosted model.

In this example, you will:

1. Publish and tag a model adapter
2. Configure an externally hosted model to use this model adapter
3. Host the model in a live deployment or Python transform and use the model

Publish and tag a Databricks tabular model adapter

The first step in connecting to an external model is to publish and tag a model adapter using the model adapter library in Code Repositories. The example model adapter below configures a connection to a Unity Catalog model deployed on Databricks Model Serving ↗. The below code was tested with versions Python 3.11.11, databricks-sdk 0.55.0, and pandas 2.2.3. For this example, we will use the wine quality prediction problem from the Databricks machine learning tutorial ↗.

Example Databricks tabular model adapter

Note that this model adapter makes the following assumptions:

• This model adapter assumes that data being provided to this model is tabular.
• This model adapter will serialize the input data to JSON and send this data to the Databricks model serving endpoint.
• This model adapter assumes that the response is deserializable from JSON to a pandas DataFrame.
• This model adapter takes three inputs to construct a client.
  • host: Provided in connection configuration (the host URL for your Databricks instance).
  • serving_endpoint_name: Provided in connection configuration.
  • token: Provided as credentials.

Copied!
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
import logging

import palantir_models as pm
import pandas as pd
from databricks.sdk import WorkspaceClient
from databricks.sdk.service.serving import QueryEndpointResponse

logger = logging.getLogger(__name__)


class DatabricksExternalModelAdapter(pm.ExternalModelAdapter):
    def __init__(self, host, serving_endpoint_name, creds):
        self.serving_endpoint_name = serving_endpoint_name
        self.client = WorkspaceClient(host=host, token=creds["token"])

    @classmethod
    def init_external(cls, external_context: pm.ExternalContext) -> "pm.ExternalModelAdapter":
        return cls(
            host=external_context.connection_config["host"],
            serving_endpoint_name=external_context.connection_config["serving_endpoint_name"],
            creds=external_context.resolved_credentials,
        )

    @classmethod
    def api(cls):
        input_cols = [
            "fixed_acidity",
            "volatile_acidity",
            "citric_acid",
            "residual_sugar",
            "chlorides",
            "free_sulfur_dioxide",
            "total_sulfur_dioxide",
            "density",
            "pH",
            "sulphates",
            "alcohol",
            "is_red",
        ]

        inputs = {"df_in": pm.Pandas(columns=[(col, str) for col in input_cols])}
        outputs = {"df_out": pm.Pandas(columns=[("predictions", bool)])}
        return inputs, outputs

    def predict(self, df_in):
        try:
            response: QueryEndpointResponse = self.client.serving_endpoints.query(
                name=self.serving_endpoint_name,
                dataframe_records=df_in.to_dict(orient="records")
            )
        except Exception as err:
            logger.error(f"An error occurred while querying the model serving endpoint: {err}")
            raise err
        else:
            return pd.DataFrame(response.as_dict()).drop("served-model-name", axis=1)

Configure the Databricks tabular model

After publishing and tagging a model adapter, you will need to configure your externally hosted model to use this model adapter in order to provide the required configuration and credentials as expected by the model adapter.

Note that the URL is required by the above DatabricksExternalModelAdapter and should be set to the full Databricks model serving endpoint URL.

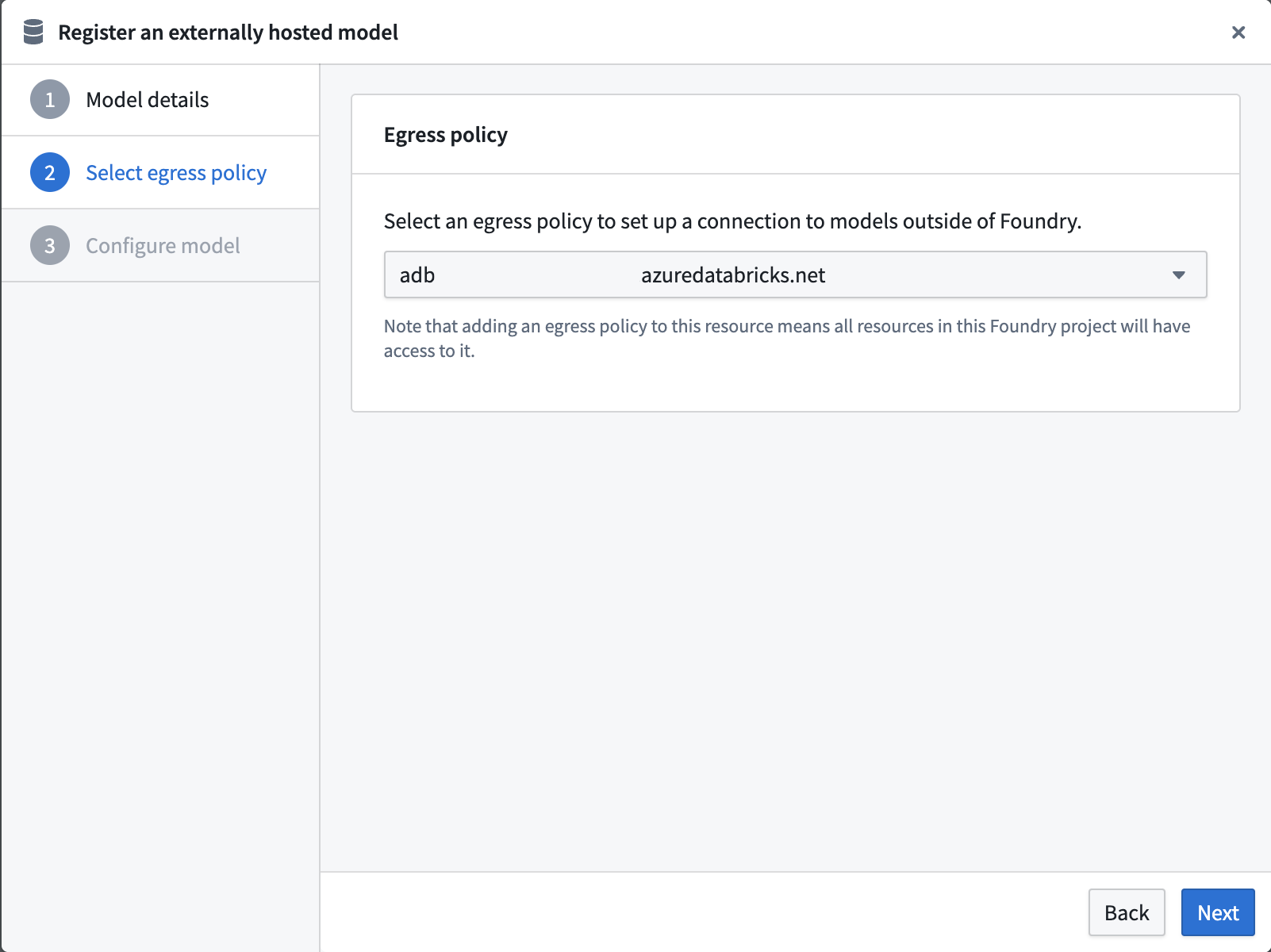

Select an egress policy

The below uses an egress policy that has been configured for your Databricks workspace domain (e.g., <workspace-name>.cloud.databricks.com or your custom domain) on Port 443.

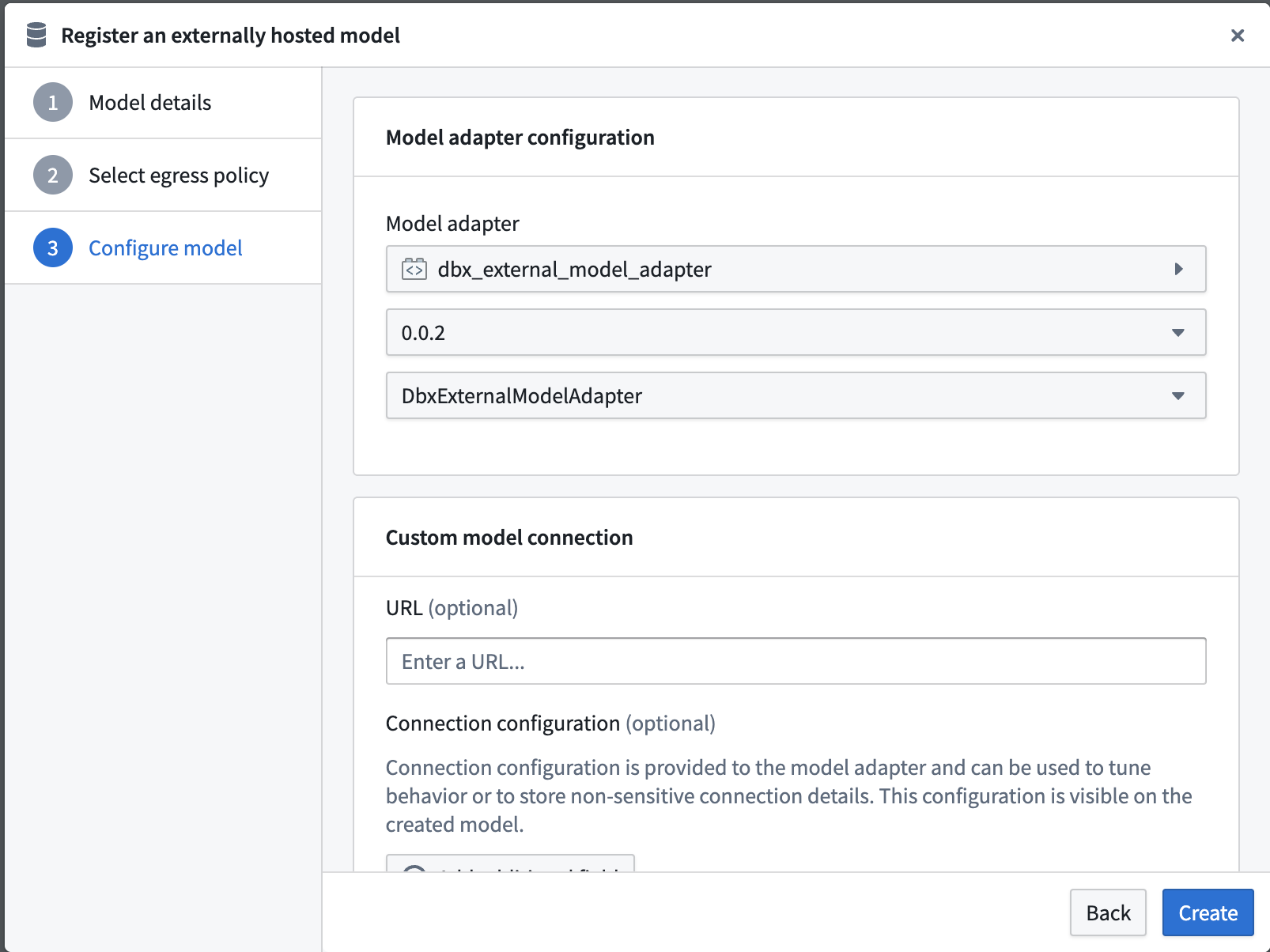

Configure model adapter

Choose the published model adapter in the Connect an externally hosted model dialog.

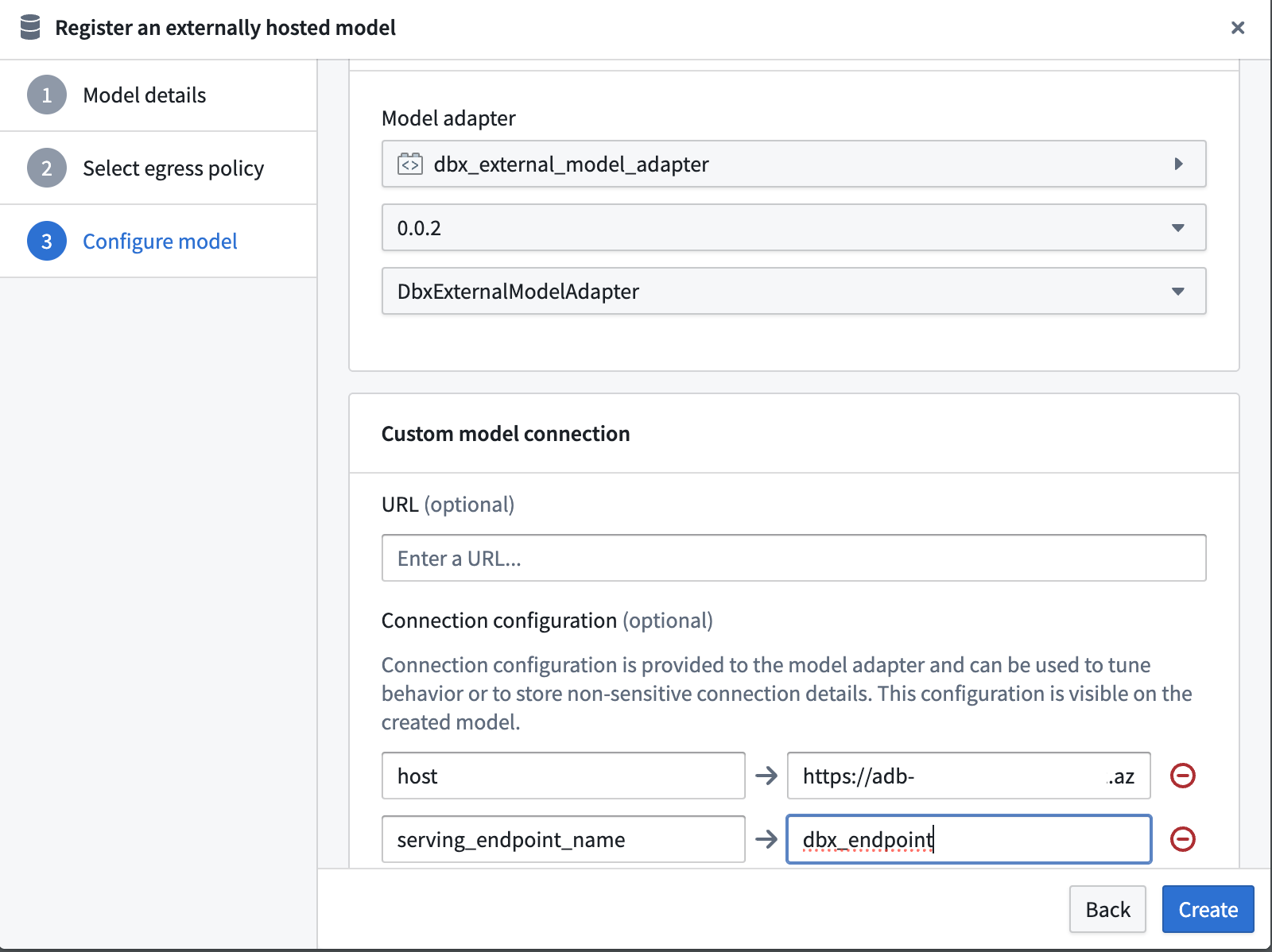

Configure connection URL

Set the Base URL to the full Databricks serving endpoint URL by setting the host and serving_endpoint_name expected by the Databricks adapter.

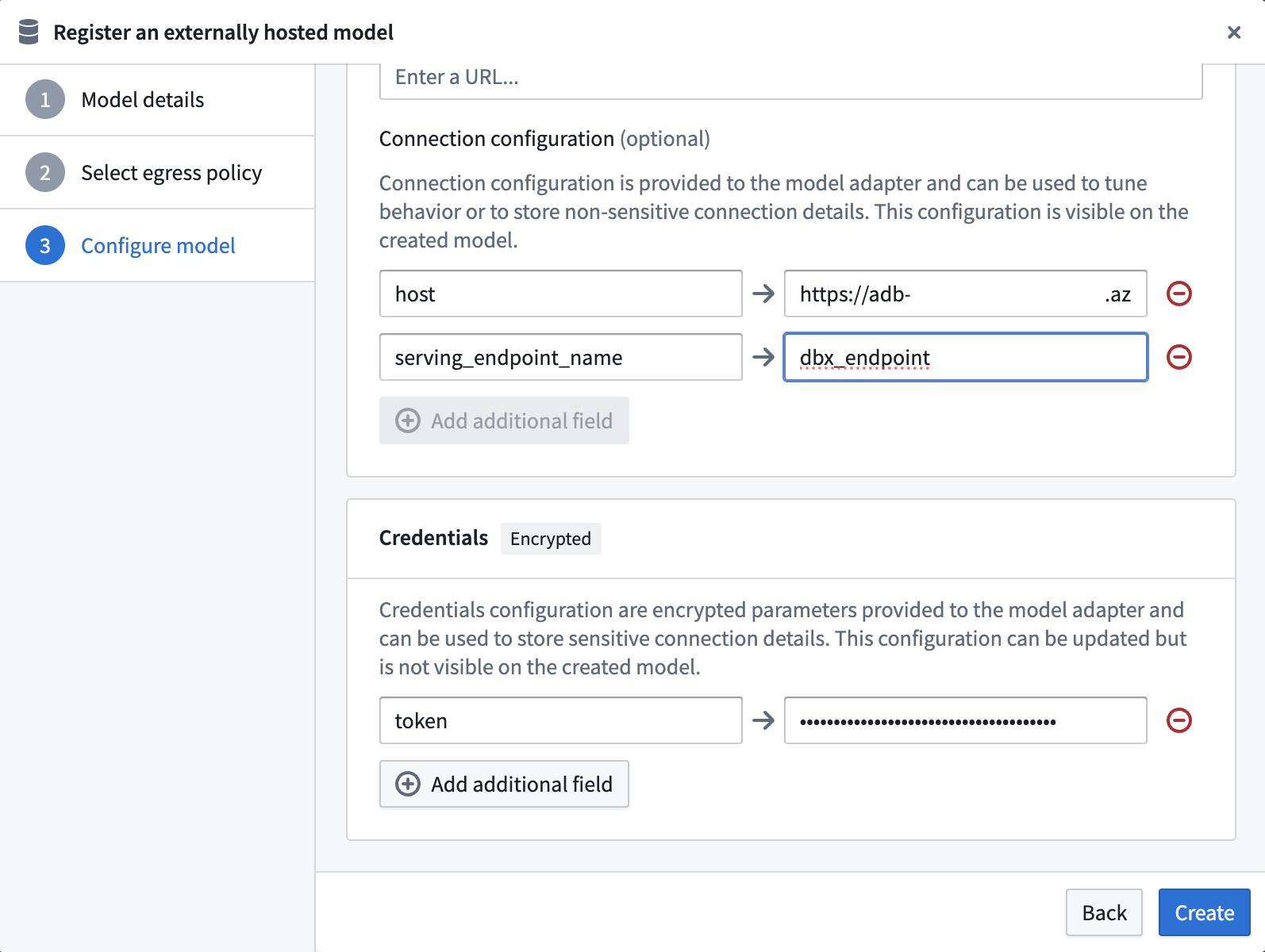

Configure credential configuration

Define credential configurations as required by the example Databricks tabular model adapter.

This adapter requires credential configuration of:

• token: A Databricks personal access token with permission to access the model serving endpoint.

Use the Databricks tabular model

Now that the Databricks model has been configured, this model can be hosted in a live deployment or Python transform.

Use the Databricks tabular model in a live deployment

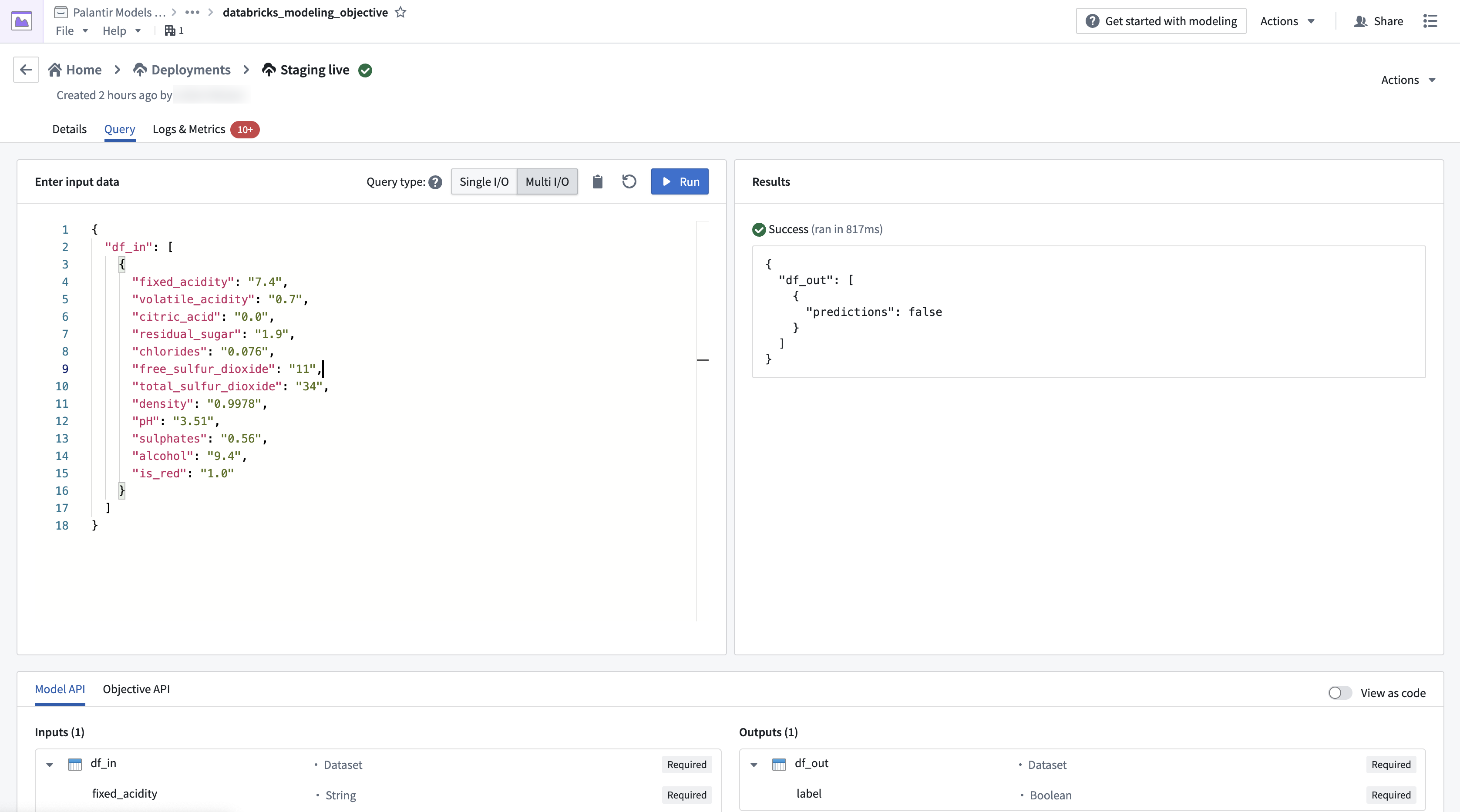

The image below shows an example query made to the Databricks model in a live deployment.

Use the Databricks tabular model in a transform

You can also use the adapter in a transform, as shown in the example code below:

Copied!
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
import pandas as pd
from transforms.api import Output, transform, lightweight
from palantir_models.transforms import ModelInput
from transforms.external.systems import EgressPolicy, use_external_systems


@lightweight
@use_external_systems(
    egress=EgressPolicy('<databricks_egress_policy>')
)
@transform(
    out=Output("<output_dataset_path>"),
    model=ModelInput("<external_model_path>"),
)
def compute(egress, out, model):
    df_in = pd.DataFrame([
        {
            "fixed_acidity": "7.4",
            "volatile_acidity": "0.7",
            "citric_acid": "0.0",
            "residual_sugar": "1.9",
            "chlorides": "0.076",
            "free_sulfur_dioxide": "11",
            "total_sulfur_dioxide": "34",
            "density": "0.9978",
            "pH": "3.51",
            "sulphates": "0.56",
            "alcohol": "9.4",
            "is_red": "1.0"
        },
        {
            "fixed_acidity": "7.4",
            "volatile_acidity": "0.7",
            "citric_acid": "0.0",
            "residual_sugar": "1.9",
            "chlorides": "0.076",
            "free_sulfur_dioxide": "11",
            "total_sulfur_dioxide": "34",
            "density": "0.9978",
            "pH": "3.51",
            "sulphates": "0.56",
            "alcohol": "9.4",
            "is_red": "1.0"
        }
    ]
    )
    out.write_pandas(
        model.predict(df_in)
    )
