Struct properties and shared property types

Struct properties can be used by local and shared property types. When converting, or promoting a local property type to a shared property type, struct fields need to be re-mapped. Local struct property types backed by shared property types will inherit shared property type fields except for the struct field resource identifiers (RIDs). Struct field metadata (display name, description, aliases) will then be inherited from the shared property type, but struct fields with keep their original RIDs.

Create a struct type shared property

  1. In Ontology Manager, you can create a struct type shared property in two ways:

    • From the top right of the homepage, select New > Shared property

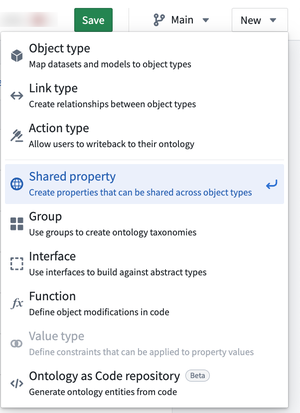

      Shared property option from the New dropdown menu.
    • Select Shared properties > + New shared property

      + New shared property option in the Shared properties tab.
  2. In the main panel, select the New shared property button. This will open a helper where you can configure metadata of the shared property including the name, description, aliases, and API name. Then select Next to proceed.

    The 'Create shared property' dialog.
  3. Configure the base type, value type, visibility, and whether to require values for the property.

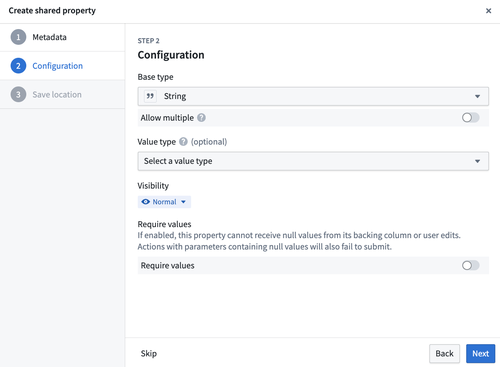

    Create shared property window on the configuration step.
  4. Select a project to save this shared property to.

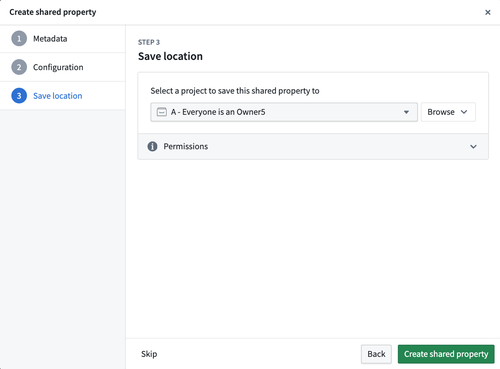

    Select save location for the shared property.
  5. Back in Ontology Manager, select Save in the upper right corner to make the change to your ontology.

Attach a struct type shared property

  1. In Ontology Manager, open the Properties tab and select the desired property from the Properties table.
  2. In the Property editor to the right, scroll down to Shared property and select a shared property under Assign. This will share property metadata among both properties.
The shared property dropdown in the Assign section.

Note: To add new struct fields after assigning a shared property type to a local struct property type, you must add the new struct fields to the shared property type and map them to datasource columns for all local struct property types that are backed by the shared property.

Convert a struct property type into a shared property

The following instructions detail how to convert a struct property into a struct property backed by a shared property type.

  1. In Ontology Manager, open the Properties tab and select the desired property from the Properties table.
  2. In the Property editor to the right, scroll down and select Convert to a shared property, which backs the struct property by a shared property type.
The 'Convert to a shared property' button in the Property editor.
