Base types

Property base types define the kind of data that can be stored in a property. For a complete reference of all supported property base types, see the properties overview.

Complex property base types

Some property base types require additional configuration or have specific use cases. Refer to the sections below for information on the following property base types:

• Media references: Reference media items stored in media sets.
• Struct types: Complex structured data with multiple fields.

Media references

A media reference property type allows you to have media on your objects, such as images, videos, audio files, and documents.

A media reference points to a specific media item within a media set. The media reference contains information about the media file, which means Foundry can display the media wherever the media reference is used.

Media reference format

Below is an example media reference:

Copied!
1
2
3
4
5
6
7
8
9
10
11
{
  "mimeType": "image/png",
  "reference": {
    "type": "mediaSetViewItem",
    "mediaSetViewItem": {
      "mediaSetRid": "ri.mio.main.media-set.00000000-0000-0000-0000-00000000000",
      "mediaSetViewRid": "ri.mio.main.view.00000000-0000-0000-0000-00000000000",
      "mediaItemRid": "ri.mio.main.media-item.00000000-0000-0000-0000-00000000000"
    }
  }
}

The media reference includes the following:

• mimeType: The file's media type.
• reference: A reference containing the media set RID, view RID, and specific media item RID.

Configure media reference properties

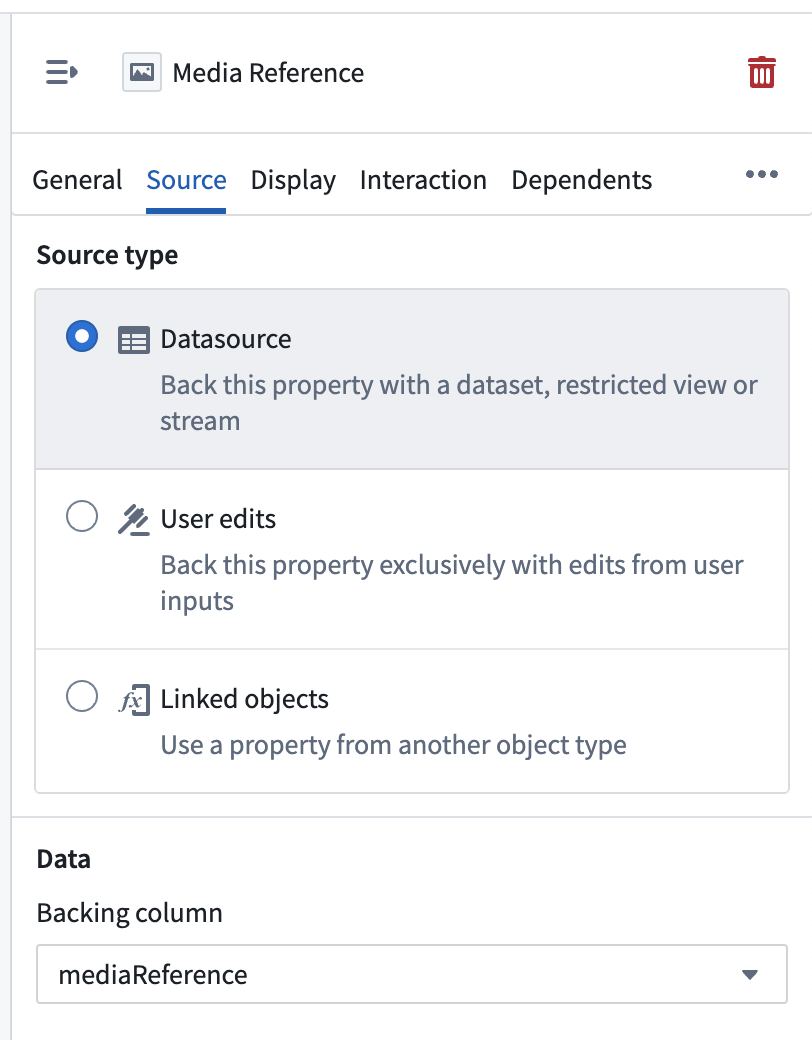

Object types with media reference properties are backed by a dataset. The backing dataset must include a media reference column, which will map to the media reference property. This column type is specifically designed to store media reference values and ensures proper integration between your ontology objects and media sets.

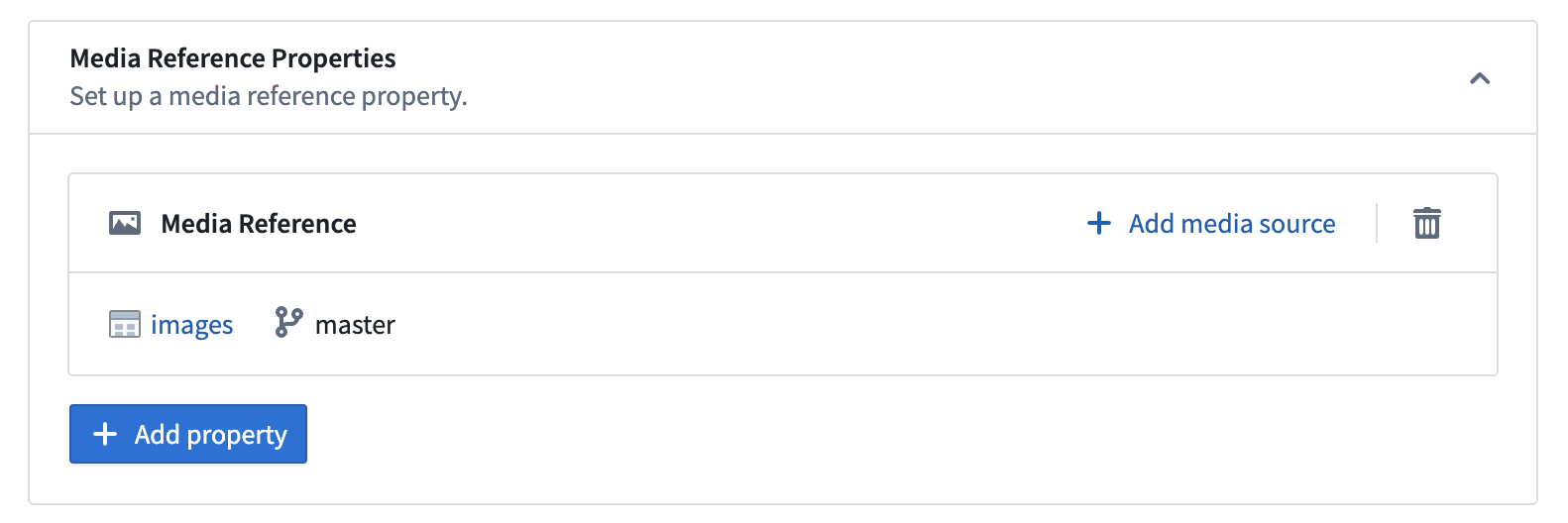

Additionally, a media reference property must have a media source, which can be configured in the Capabilities tab of the object type. This media source should be the media set that the media references point to.

Structs

A struct is an ontology property base type that allows users to create schema-based properties with multiple fields. Struct properties are created from struct type dataset columns. To learn more about structs, refer to the complete struct documentation.
