In addition to transforming tabular structured data, Pipeline Builder allows you to transform unstructured data, represented in the Palantir platform as media sets.
Transforming media generally means one of two things: either manipulating media or extracting information from media. A transform that manipulates media will take a media input and produce a media output. An expression that extracts information from media will take a media input and produce a tabular output.
You can start transforming your unstructured data in Pipeline Builder after adding data from Foundry in the form of a media set to your workspace.
Media set inputs do not need to be converted to tables. When a media set input is added to a pipeline, it can be read as a media set or tabular input, meaning you can apply media transformations or tabular expressions without needing to convert it.

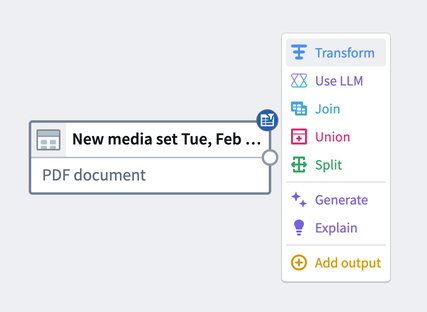

To apply a transform to a media set, choose a media set node in your workspace and select Transform.
In the transform page, search for a transform type by name or browse from a list of available transforms. You can also select the Media category on the left-hand side to browse only available media transforms.

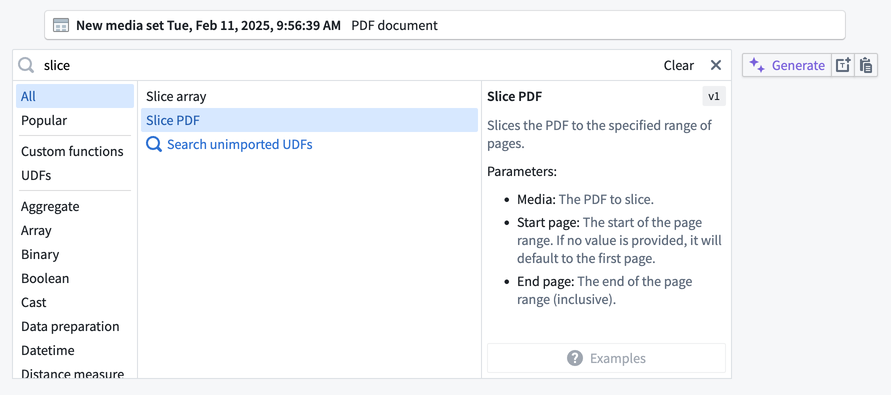

The example below shows how to take a media set input containing PDF documents and trim down, or "slice", the documents to a subset of their pages. You can do this by searching for and selecting the Slice PDF transform.
Slicing PDF documents is an example of transforming media by manipulating it. However, you may wish to extract information from your documents instead.

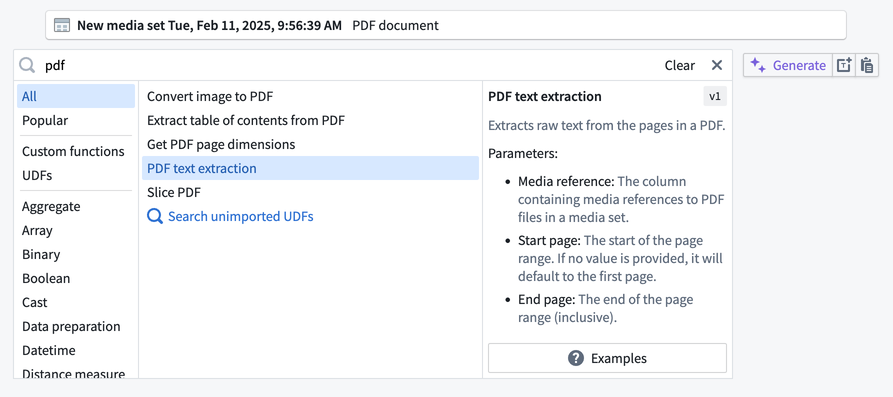

The example below begins with the same media set input containing PDF documents; if you want to extract the text from the documents, you can search for and then select the PDF text extraction transform.
Many transforms will prompt you to provide parameters to configure how the transform should run. Complete these parameters as appropriate for your workflow.
The example below shows how to configure the Slice PDF transform in order to slice the documents to pages 2 through 5.

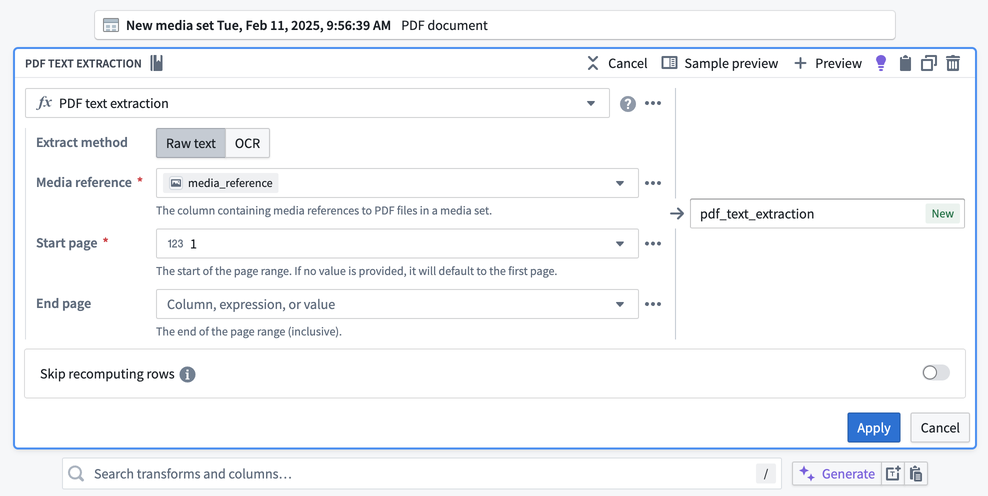

Below is an example of how to use the PDF text extraction transform to extract text for an entire document. In configuration, select Raw text because the text is embedded in the documents, but OCR is available if that were not the case.
For Media reference, select the media_reference
column from the dropdown. For Start page and End page, leave the default values at 1
and empty respectively in order to extract text for all pages.

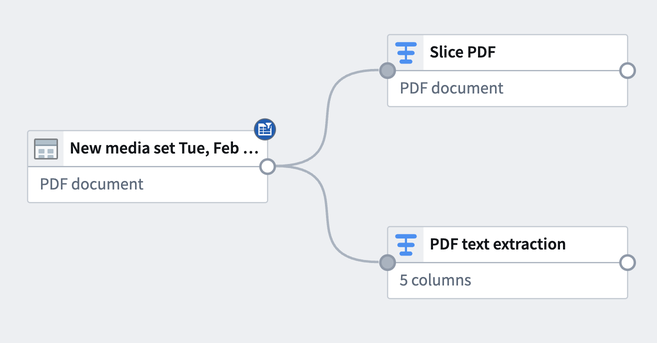

After configuring the transform board, select Apply to add the transform to your pipeline. The example below shows the addition of two different transform paths with the transforms used above, renamed to Slice PDF
and PDF text extraction
respectively.
From here, you can add an output or add subsequent downstream transforms.
Learn more about adding pipeline outputs.
It is not currently possible to extract information from media that has been transformed, or to transform media that is referenced in a dataset.
It is also not possible to transform media in changelog mode when using a media set input that contains deleted items.
