Video Display widget

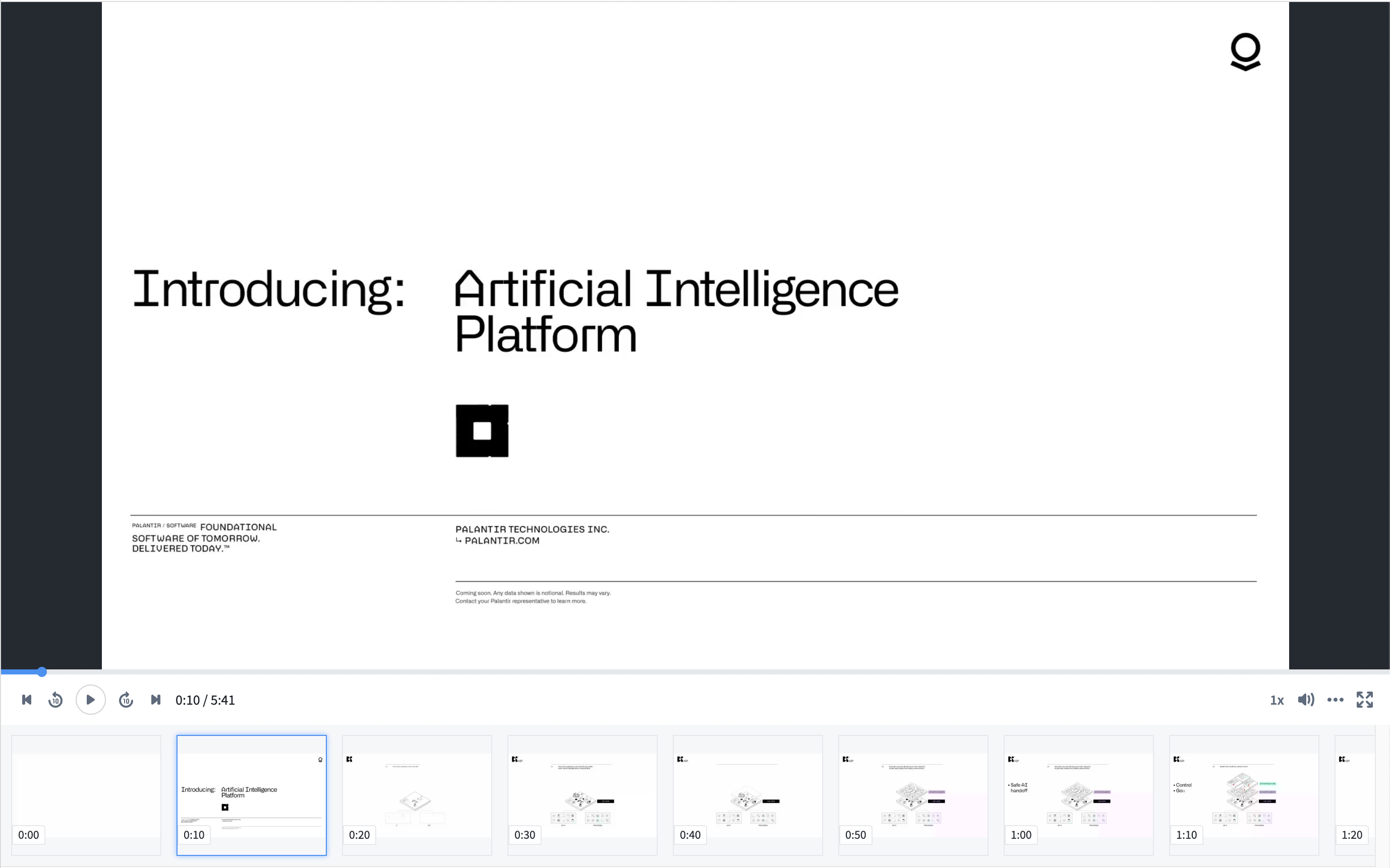

The video display widget displays video from a media reference property on an object.

In contrast to the Media Preview Widget the Video Display Widget provides additional video specific configuration options, such as displaying video frames, and providing timestamp driven behavior.

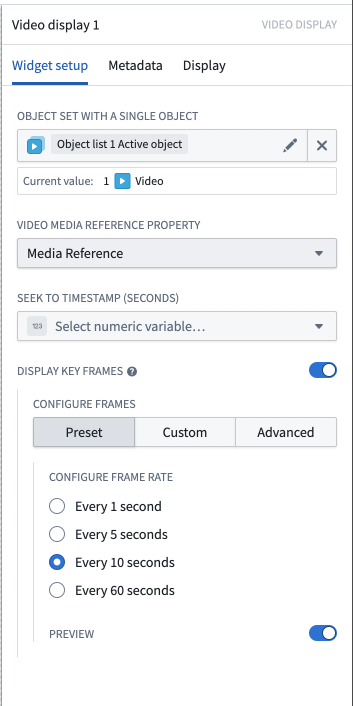

Configuration options

• Object set with a single object: An object with a media reference property

• Video media reference property: Media reference object property that is a video media reference

• Seek to timestamp (seconds): Optional numeric variable that seeks the video to a specific timestamp

  • If the given number is greater than the length of the video, it will seek to the end of the video
  • If the given number is less than zero, it will seek to the beginning of the video
  • Playback will work as normal on user interaction

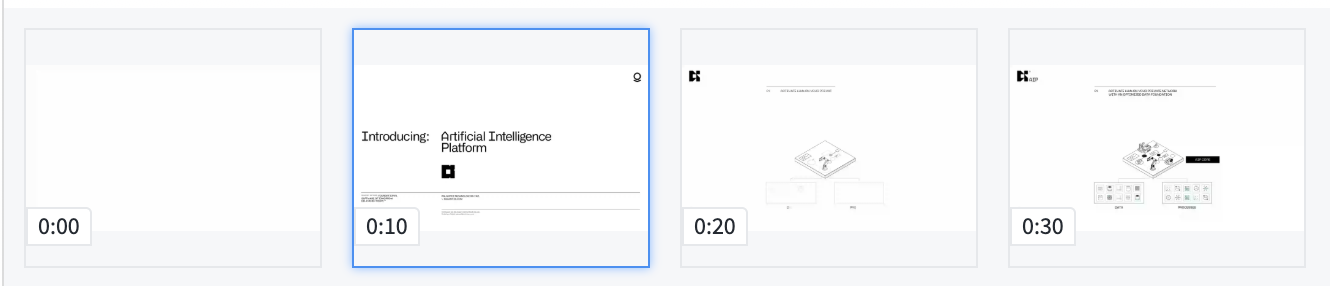

• Display Key Frames: Optionally display select frames below the video.



  • Preset: Creates a frame at the specified interval.
    • Every 1 second
    • Every 5 seconds
    • Every 10 seconds
    • Every 60 seconds
  • Custom: Creates a frame according to the provided Numeric Array variable.
    • Each number in the array should correspond to a time in seconds that represents the desired frame.
  • Advanced: Automatically find scene frames.
  • Frames are selected using intelligent video analysis to determine major scene changes. Available sensitivities include:
    • Less Sensitive
    • Standard
    • More Sensitive
