Media sets

Media sets enable you to store, transform, and work with your media files. Media sets can be utilized across the platform to power your workflows.

For more information on how to integrate media into your workflows, follow the relevant documentation:

• Importing media into Foundry
• Transforming media via Code Repositories or Pipeline Builder
• Using media in the Ontology
• Using media in Workshop

For walkthroughs on building an end-to-end workflow with media, see example workflows.

Supported media set schemas

A media set has a schema type, which defines the type of files that can be stored in the media set, such as documents, images, or audio. Every media set also has a primary format, which specifies the file format that all files in the media set must be.

The file formats supported in media sets are as follows:

• Audio
  • WAV (.wav)
  • FLAC (.flac)
  • MP3 (.mp3)
  • MP4 (.mp4)
  • NIST SPHERE (.sph)
  • WEBM (.webm)
• DICOM
  • DICOM (.dcm)
• Document
  • PDF (.pdf)
  • DOCX (.docx) (as additional input format)
  • PPTX (.pptx) (as additional input format)
  • TXT (.txt) (as additional input format)
• Image
  • PNG (.png)
  • JPEG (.jpg, .jpeg)
  • JP2K (.jp2)
  • BMP (.bmp)
  • TIFF (.tiff, .tif)
  • NITF (.nitf)
• Video
  • MP4 (.mp4)
  • MOV (.mov)
  • TS (.ts)
  • MKV (.mkv)

Additional input formats

Media sets may also have additional input formats, which allow for other file formats to be accepted into the media set. Upon upload, these files will automatically be converted to the primary format. Only specified additional input formats will be accepted on upload.

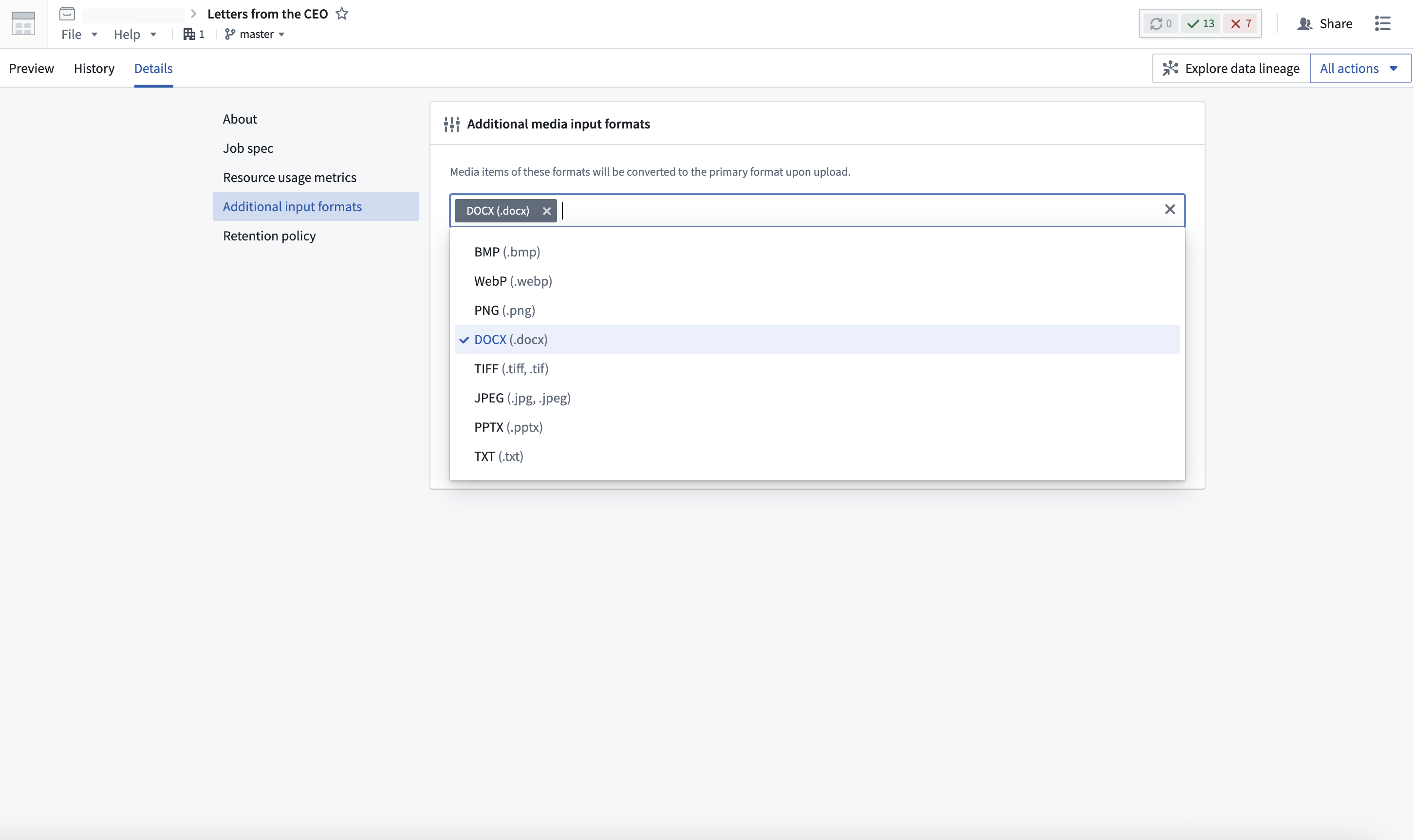

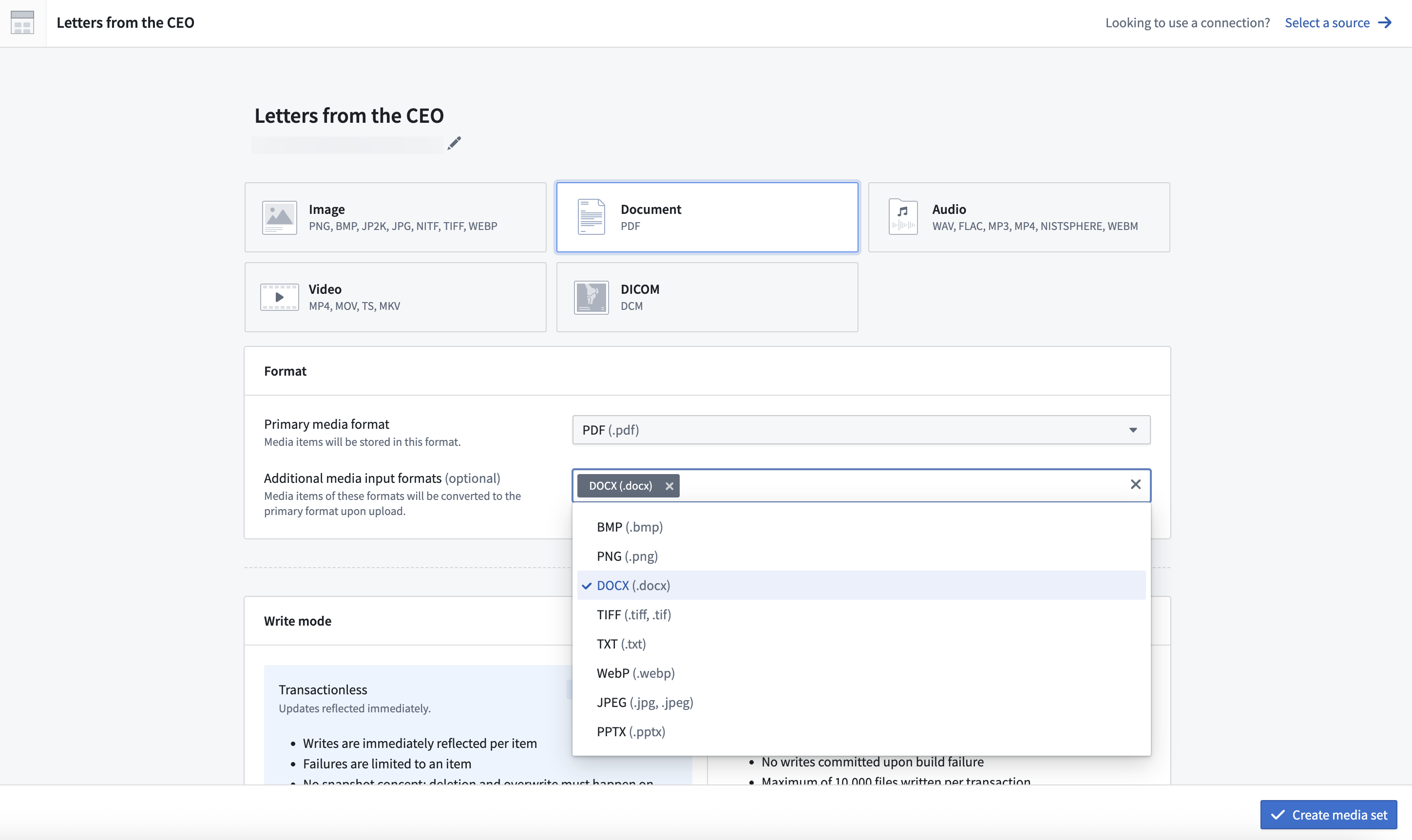

Additional input formats can be configured during the creation of a media set, as well as under the media set details tab.

Some file types can only be processed as additional input formats. For example, DOCX (.docx), PPTX (.pptx), and TXT (.txt) files can be uploaded to PDF (.pdf) media sets as additional input file formats, even though they are not supported as primary file formats.

Note that not all primary formats support additional input formats.

Media references

Items in media sets can be referenced using media references. Media references enable you to use a media item in Foundry without having to make copies of the media item itself.

You can use media references to reference media set items in datasets. This is useful for associating media items with metadata or other information in a tabular format. For example, you can associate the original PDF with its file name, page count, and extracted text as additional columns.

You can also use media references as inputs to model adapters for batch inference pipelines.

To produce a list of media references for your media set, use the Get media references function in Pipeline Builder. You can also produce media references in Python Transforms by importing the transforms-media library and calling the list_media_items_by_path_with_media_reference method.

Even if a path has been overwritten by a newer upload, a saved media reference to the "overwritten" media item will continue to render and reference the original item.

Copied!
1
2
3
4
5
6
7
8
9
10
11
12
13
from pyspark.sql import functions as F
from transforms.api import transform, Input, Output
from transforms.mediasets import MediaSetInput


@transform(
    metadata_out=Output("{YOUR_OUTPUT_METADATA_DATASET}"),
    mediaset_in=MediaSetInput("{YOUR_MEDIA_SET_RID}")
)
def compute(ctx, mediaset_in, metadata_out):
    media_references = mediaset_in.list_media_items_by_path_with_media_reference(ctx)
    column_typeclasses = {'mediaReference': [{'kind': 'reference', 'name': 'media_reference'}]} # Enables in-line thumbnails in dataset
    metadata_out.write_dataframe(media_references, column_typeclasses=column_typeclasses)

Delete media items from media sets

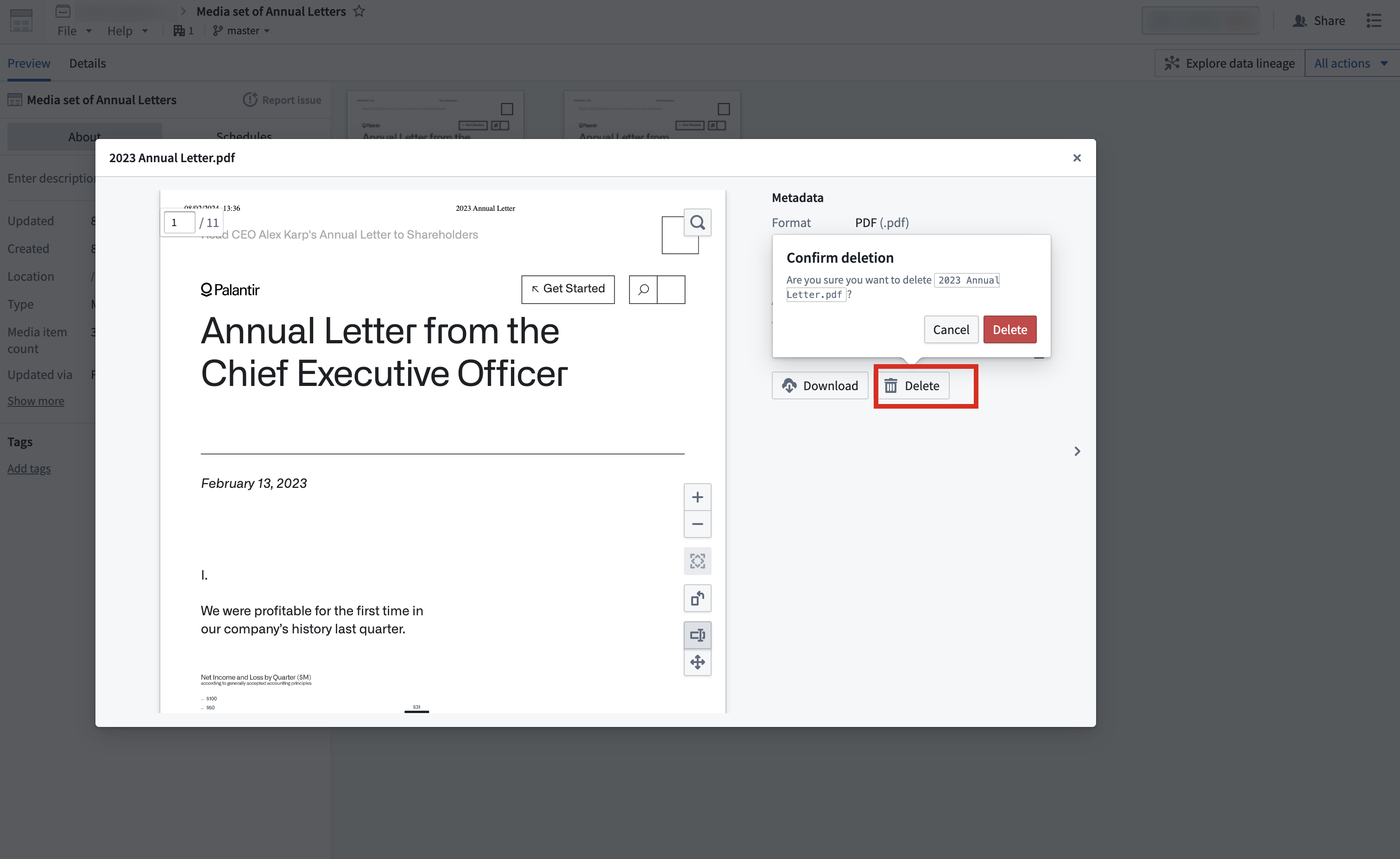

You can delete media items from a media set by selecting the media item that you want to delete, and selecting the Delete action. To prevent accidental deletion, this action will require you to select Delete in the pop-up again to confirm your intention of deleting a media item.

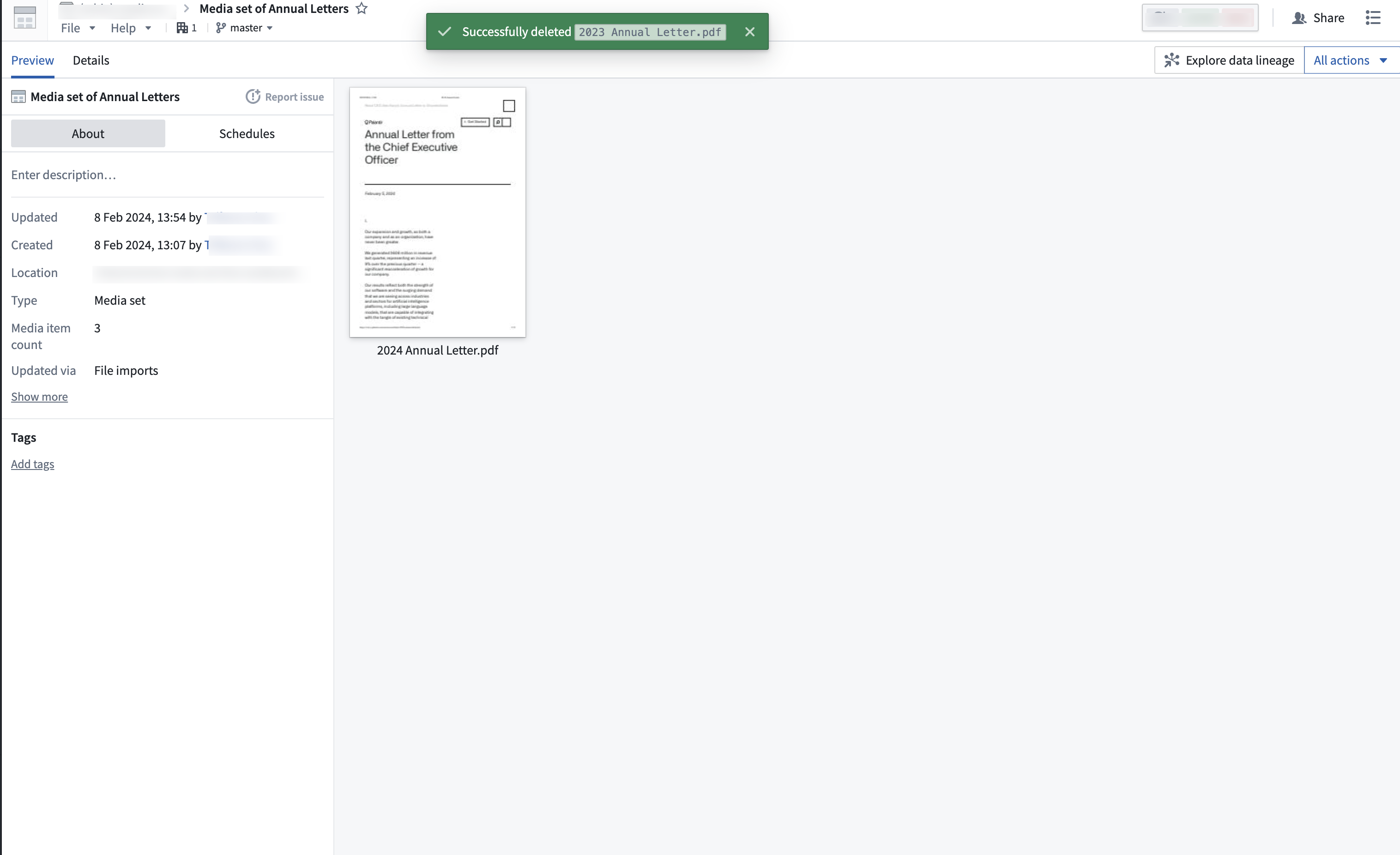

Once you have successfully deleted the item, the media set will refresh with a success message. You can now view the media set without the deleted media item.

Further reading on media sets

For more further information on media sets, visit:

• Advanced media set settings
• Media usage costs and limits
